Introduction to Python

Lesson 1

Closely following Automate the boring stuff with Python

Expressions and the interactive shell

Let's play with repl.it:


expressions consist of values and operators:

                         >>> 2 + 2
                         4

Do you know any other operators?

There are plenty of operators available:

Operator Operation Example
+ Addition 1 + 7 evaluates to 8
- Subtraction 80 - 12 evaluates to 68
* Multiplication 2 * 3 evaluates to 6
/ Division 15 / 4 evaluates to 3.75
** Exponent 2 ** 3 evaluates to 8
% Modulus/Remainder 22 % 8 evaluates to 6
// Integer Division/Floored Quotient 22 // 8 evaluates to 2

                        >>> 2 ** 8
                        256
                        >>> (5 - 1) * ((7 + 1) / (3 - 1))
                        16.0


Errors are okay!


                        >>> 42 + 5 + * 2
                          File "python", line 1
                            42 + 5 + * 2
                                     ^
                        SyntaxError: invalid syntax


Syntax matters

This is a grammatically correct English sentence. This grammatically is sentence not English correct a.

Similar rules apply to Python:

                        >>> 5 +
                          File "python", line 1
                            5 +
                              ^
                        SyntaxError: invalid syntax


Data Types

A data type is a category for values. Every value is exactly one data type A look at the most common data types:
Data Type Examples
Integer -2, -1, 0, 1, 2, 3, 4, 5
Floating Point Numbers (Float) -1.25, 1.0, 17.999, 20.1
Strings 'a', 'hello world', '20 cars', ' '


                        >>> 'Hello world!
                        SyntaxError: EOL while scanning string literal

What went wrong here?

The behaviour of operator changes depending on the data types:


                    >>> 'Alice' + 'Bob'
                    'AliceBob'

This is called string concatenation

                        >>> 'Alice' + 42
                        Traceback (most recent call last):
                          File "python", line 1
                            'Alice' + 42
                        TypeError: Can't convert 'int' object to str implicitly

Python doesn't understand this

                        >>> 'Alice' * 5
                        'AliceAliceAliceAliceAlice'

Makes sense again

Variables

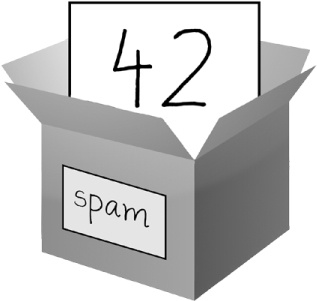

A variable is like a box in the computer's memory where you can store a single value. If you save a value into a variable you can reuse it later on

                        >>> spam = 42
                        >>> spam
                        42

variable

Try it out:

When a variable is created we call that initialized:

                    >>> spam = 40
                    >>> spam
                    40

You can then use that variable in expressions:

                    >>> eggs = 2
                    >>> spam + eggs
                    42
                    >>> spam + eggs + spam
                    82

If you want to assign a new value to a variable. This is called overwriting the variable:

                    >>> spam = spam + 2
                    >>> spam
                    42


                            >>> spam = 'Hello'
                            >>> spam
                            'Hello'
                            >>> spam = 'Goodbye'
                            >>> spam
                            'Goodbye'


Just like before, the spam variable stores "Hello" until we replace it with "Goodbye": variable

Naming Variables

  • Only use one word (no spaces, hyphens)
  • Use letters, numbers and underscores
  • variables can not begin with a number
  • Names are case sensitive



                                >>> password_to_pc = 'top secret' # valid
                                >>> _password = 'test'            # valid
                                >>> myPassword = 'my pets name'   # valid

                                >>> 4password                     # cannot start with a number
                                >>> password-to-pc                # cannot use hyphens
                                >>> password to pc                # no spaces


Good Names?

A good variable name describes the data it contains. Imagine that you moved to a new house and labeled all of your moving boxes as Stuff. You’d never find anything!


Conventions


                                >>> bank_account_nr = 12345     # snake case
                                >>> bankAccountNr = 12345       # camel case


Pick one and stick with it

(Python convention is snake case)

Your First Program

The interactive shell is good for trying things out but we wan't to write entire programs. In a program you can type multiple instructions before executing them.


                    # This program says hello and asks for my name.

                    print('Hello world!')
                    print('What is your name?')    # ask for their name
                    my_name = input() # raw_input if you're in python2
                    print('It is good to meet you, ' + my_name)
                    print('The length of your name is:')
                    print(len(my_name))
                    print('What is your age?')    # ask for their age
                    my_age = input()
                    print('You will be ' + str(int(my_age) + 1) + ' in a year.')

Make sure you save it!

Comments


                    # This program says hello and asks for my name.

Text following a hash mark is a comment

The print() function


                    print('Hello world!')
                    print('What is your name?')    # ask for their name

The print() function prints everything inside the parenthesis on the screen. We say that python is calling the print() function with a string value passed to the function. A value passed to a function is called an argument

The parenthesis are important. They mean we are calling a function. Just print would refer to a variable.

The input() function


                    my_name = input()

input waits for the user's input and saves it into my_name as a string

Printing variables


                    print('It is good to meet you, ' + my_name)

If 'Kathrin' was stored in my_name then this expression would print "It is good to meet you, Kathrin"

The len() function


                    print('The length of your name is:')
                    print(len(my_name))

The len() functions evaluates the length of a string. Try it out:

                    >>> len('hello')
                    5
                    >>> len('I really like learning Python')
                    29
                    >>> len('')
                    0

The result of the len() function is then passed to the print() function. The print() function can take integers and string values but try mixing the two:

                    >>> print('I am ' + 29 + ' years old.')
                    Traceback (most recent call last):
                       File "python", line 1
                        print('I am ' + 29 + ' years old.')
                    TypeError: Can't convert 'int' object to str implicitly


The str(), int() and float() functions

If you want to concatenate an integer (like 29) with a string you need to convert 29 to '29'

                        >>> str(29)
                        '29'
                        >>> print('I am ' + str(29) + ' years old.')

Can you guess what int() and float() do?

                        >>> int('-99')
                        -99
                        >>> int(1.25)
                        1
                        >>> int(1.99)
                        1
                        >>> float('3.14')
                        3.14
                        >>> float(10)
                        10.0

How can you do calculations on a variable and then print it?

                        print('What is your age?') # ask for their age
                        my_age = input()
                        print('You will be ' + str(int(my_age) + 1) + ' in a year.')


my_age contains the value returned from input() as a string. To add 1 to it we need to convert it to an integer.

                        int(my_age) + 1


To print this to the user's screen we need to convert it to a string again:

                        str(int(my_age) + 1)


Text and Number Equivalence

You can check equivalence using == in Python:

                    >>> 42 == 37
                    False
                    >>> 42 == '42'
                    False
                    >>> 42 == 42.0
                    True
                    >>> 42.0 == 0042.000
                    True


Booleans


Unlike the other datatypes, the Boolean data type has only two values:
True and False (Fun fact: True/False is capitalized because the data type is named after mathematician George Boole)
Boolean values can be stored in variables, e.g.

                            >>> my_first_bool = True


Python will give you an error message if:
  • You don’t use the proper case (e.g. true instead of True)
  • You try to use True and False for variable names
Type the following into your interactive shell

                        >>> spam = True

Now type out spam again, what do you think you'll get if you hit enter?

                        >>> spam

If you guessed True, then you'd be right!

                        >>> True


Some more questions to try in your terminal:

What happens if you type true with a lower case t?

                        >>> true

What happens if you try to use True or False as the name of a variable?

                        >>> True = 2 + 2

What happens if you type False == False? Why?

                        >>> False == False

This is called comparison operators and we'll cover that next!

Comparison Operators

We use these to compare two values and return a True or False statement
Operator Meaning
== Equal to
!= Not equal to
< Less than
> More than
<= Less than or equal to
>= More than or equal to

Beware

==

is not the same as:

=

Time for some practice!

Type the following into your terminal and see what they return:

                    >>> 42 == 42
                    >>> 42 == 99
                    >>> 2 != 3
                    >>> 2 != 2
                    >>> 'hello' == 'hello'
                    >>> 'hello' == 'Hello'
                    >>> 'dog' != 'cat'
                    >>> True != False
                    >>> 42 == 42.0
                    >>> 42 == '42'


Time for some practice!

Type the following into your terminal and see what they return:

                    >>> 42 < 100
                    >>> 42 > 100
                    >>> 42 < 42

                    >>> my_number = 42
                    >>> my_number <= 42

                    >>> my_age = 29
                    >>> my_age >= 10

Click here for another exercise And find even more questions here

Boolean Operators

Comparing booleans!


and
or
not

Only 3 things to remember, easy!

The and operator

Evaluates to True if both booleans are True

                >>> (5 > 2) and (5 < 10)
                >>> True

                >>> (5 == 2) and (5 < 10)
                >>> False

Example: You need to be older than 20 and younger than 30.

                >>> age = 27
                >>> (age > 20) and (age < 30)
                >>> True


The or operator

Evaluates to True if either of the booleans are True

                >>> (27 > 20) or (5 < 1)
                >>> True

                >>> (5 == 2) or (5 < 1)
                >>> False

Example: To watch Netflix on your phone you need to be connected to Wifi OR have a mobile data connection.

                >>> wifi_connection = True
                >>> mobile_connection = False
                >>> wifi_connection or mobile_connection
                >>> True


The not operator

Unlike and and or the not operator only takes one Boolean Evaluates to the opposite of the Boolean value

                >>> not True
                >>> False

                >>> not not False
                >>> False

Example: If you are not in debt you can get a credit card

                >>> in_debt = True # owes money to someone
                >>> not in_debt
                >>> False # can not get a credit card


Time for some practice!

Type the following into your terminal and see what they return:

                    >>> (4 < 5) and (5 < 6)
                    >>> (4 < 5) and (9 < 6)
                    >>> (1 == 2) or (2 == 2)

                    >>> 2 + 2 == 4 and not 2 + 2 == 5 and 2 * 2 == 2 + 2

Click here for another exercise

Practice Questions

Which of the following are operators and which are values?


                    *
                    'hello'
                    -88.8
                    -
                    /
                    +
                    5


Which of the following is a variable and which is a string?


                        'spam'
                        spam


What does bacon hold after the following code? And what is printed on the screen?


                        >>> bacon = 20
                        >>> bacon + 1


Why does the following return an error?


                        print('I have eaten' + 99 + 'burritos')


What are the two values of the Boolean data type? How do you write them?

What do the following expressions evaluate to?


                            (5 > 4) and (3 == 5)
                            not (5 > 4)
                            (5 > 4) or (3 == 5)
                            not ((5 > 4) or (3 == 5))
                            (True and True) and (True == False)
                            (not False) or (not True)


Thank you!!

Introduction to Python

Lesson 2

Closely following Automate the boring stuff with Python

Warmup Exercise

Lesson 1 Recap

Flow Control

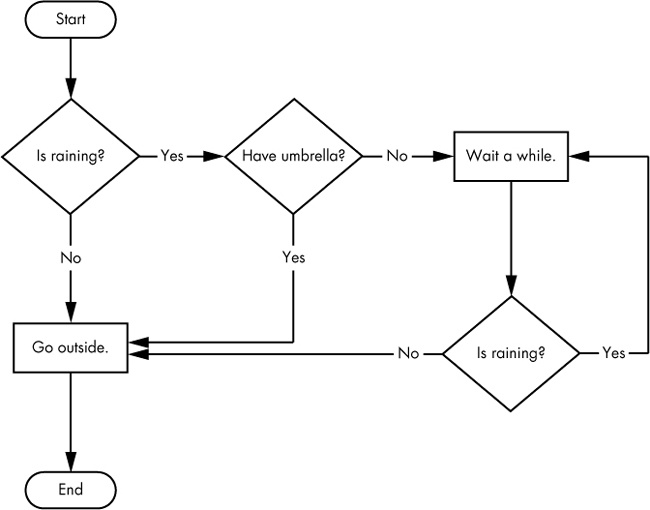

flowchart_rain
A programm is a series of instructions, but the real power is that the program can decide which instructions to execute and which to skip. This is called Flow control.

Flow Control Statements

A bit of vocabulary

Conditions

Conditions always evaluate down to a Boolean value, True or False. A flow control statement decides what to do based on whether its condition is True or False.

Blocks of Code

Lines of Python code can be grouped together in Blocks. You can tell when a block begins and Ends by indentation.

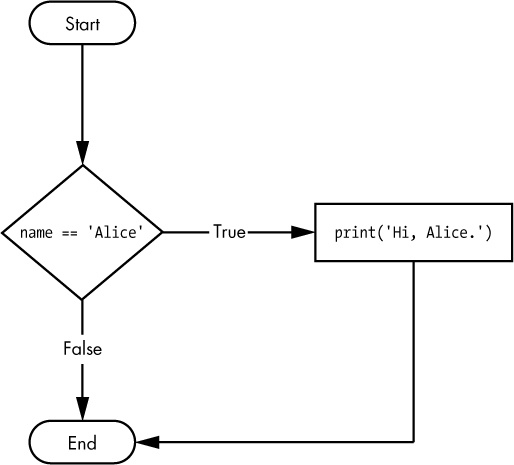

If statements

“If this condition is true, execute the code in the clause.”

                    if name == 'Alice':
                        print('Hi, Alice')


In Python, an if statement consists of the following:
  • The if keyword
  • A condition
  • A colon
  • An indented Block (the if clause)

                if name == 'Alice':
                    print('Hi, Alice')

variable

Else statements

“If this condition is true, execute the code in the clause. Else, execute the code in the else-block"

                        if name == 'Alice':
                            print('Hi, Alice')
                        else:
                            print('Hello, stranger')


In Python, an else statement consists of the following:
  • The else keyword
  • A colon
  • An indented Block (the else clause)

                    if name == 'Alice':
                        print('Hi, Alice')
                    else:
                        print('Hello, stranger')

variable

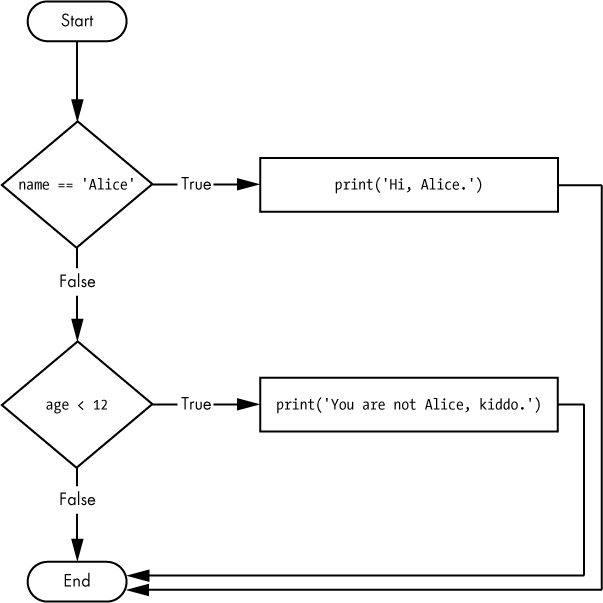

elif statements

“If this condition is true, execute the code in the clause. Else if this condition is true, execute the code in this clause”

                        if name == 'Alice':
                            print('Hi, Alice')
                        elif age < 12:
                            print('You are not Alice, kiddo')


In Python, an elif statement consists of the following:
  • The elif keyword
  • A condition
  • A colon
  • An indented Block (the elif clause)

                    if name == 'Alice':
                        print('Hi, Alice')
                    elif age < 12:
                        print('You are not Alice, kiddo')

variable
You can put as many elif statements as you like:

                        if name == 'Alice':
                            print('Hi, Alice.')
                        elif age < 12:
                            print('You are not Alice, kiddo.')
                        elif age > 2000:
                            print('Unlike you, Alice is not an undead, immortal vampire.')
                        elif age > 100:
                            print('You are not Alice, grannie.')

The order of the statements matters. Can you see why?

                            if name == 'Alice':
                                print('Hi, Alice.')
                            elif age < 12:
                                print('You are not Alice, kiddo.')
                            elif age > 100:
                                print('You are not Alice, grannie.')
                            elif age > 2000:
                                print('Unlike you, Alice is not an undead, immortal vampire.')



Putting it all together:


                            if name == 'Alice':
                                print('Hi, Alice.')
                            elif age < 12:
                                print('You are not Alice, kiddo.')
                            elif age > 100:
                                print('You are not Alice, grannie.')
                            elif age > 2000:
                                print('Unlike you, Alice is not an undead, immortal vampire.')
                            else:
                                print('I dont know who you are, but certainly not Alice')


Time for some practice!

Can you write a small program that asks a user if he/she has wifi and/or a mobile connection and then tells them if they can access the internet? Wifi should always be the preference if available. The expected output should look something like:

                            >>> "Do you have wifi?"   yes
                            >>> "Do you have mobile data?"   yes
                            >>> "You can access the internet through wifi"

                            >>> "Do you have wifi?"   yes
                            >>> "Do you have mobile data?"   no
                            >>> "You can access the internet through wifi"

                            >>> "Do you have wifi?"   no
                            >>> "Do you have mobile data?"   yes
                            >>> "You can access the internet through mobile data"

                            >>> "Do you have wifi?"   no
                            >>> "Do you have mobile data?"   no
                            >>> "I am sorry, you cannot access the internet"

Think about how you can handle different cases of a user writing "yes" (yes/Yes/YES/Y, etc)

While loop statements

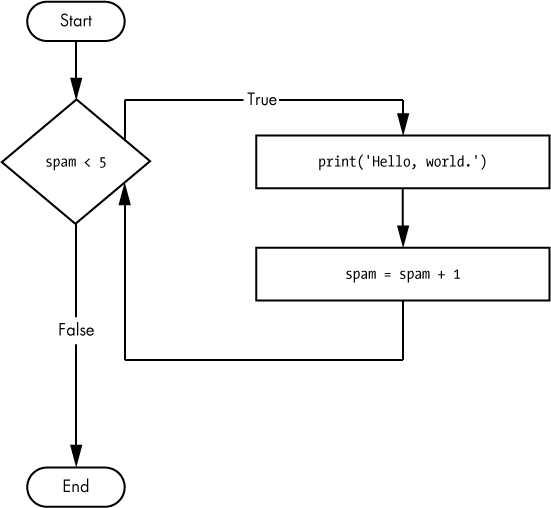

variable
You can make a block of code execute over and over again with a while statement.

                    spam = 0
                    while spam < 5:
                        print('Hello, world.')
                        spam = spam + 1


A while statement consists of the following:
  • The while keyword
  • A condition
  • A colon
  • An indented Block (the while clause)

An annoying while loop


                            name = ''
                            while name != 'your name':
                                print('Please type your name.')
                                name = input()
                            print('Thank you!')

Try it out! How can you reach the 'Thank you'? Why?

break statements

There is a shortcut to getting the program execution to break out of a while loop’s clause early. If the execution reaches a break statement, it immediately exits the while loop

                        while True:
                            print('Please type your name.')
                            name = input()
                            if name == 'your name':
                                break
                        print('Thank you!')

This does the same thing as the previous code.

continue statements

Like break statements, continue statements are used inside of loops. Unlike break statements, they cause the program execution to jump back to the start of the loop (and re-evaluate the condition).

                        num = 0
                        while num < 10:
                            num = num + 1
                            if num % 2 == 0:
                                # number is even
                                continue
                            print(num)


For loops

While loops execute the same code until a condition is met, but what if we want to run some code a set number of times?

                            for i in range(5):
                                print(i)

In Python, a for loop consists of the following:
  • The for keyword
  • A variable name
  • The in keyword
  • A sequence of items that we loop though, in this case range()
  • A colon
  • An indented block of code that we execute for each in item we are looping over

range() function


                        range(start, stop, step)

Range is a function that returns a list like sequence of values up to a stop value. The list returned excludes the stop value. Try it out! Replace the range function in the loop on the previous slide with the following:
  • range(0,5)
  • range(3,10)
  • range(10,20,2)

While loops and for loops are equivalent


                            for i in range(5):
                                print(i)


                            i = 0
                            while i < 5:
                                print(i)
                                i = i + 1

In this case, the for loop is neater and easier to understand. Choose the loop depending on the situation.

Time for practice

  • Can you write code that counts down from 5?
  • Can you write code that asks the user for their name and says "Hello, [name]" five times?

Practice Questions

Write code that prints "Hello" if 1 is stored in spam, prints "Howdy" if 2 is stored in spam, and prints "Greetings!" if anything else is stored in spam.

Can you understand the following code?


while True:
    print('Who are you?')
    name = input()
    if name != 'Joe':
	continue
    print('Hello, Joe. What is the password? (It is a fish.)')
    password = input()
    if password == 'swordfish':
	break
print('Access granted.')


Can you write code that sums up all the numbers from 1 to 10?

Hint: you should use a for loop and you need "somewhere" to store your sum.

Can you write code that prints all the values from 1 to 50 and skips 27?

Introduction to Python

Lesson 3

Closely following Automate the boring stuff with Python

Warmup Exercise

Lesson 2 Recap
Lesson 3 Warmup: Fix the errors
Lesson 3 Warmup: Loops Recap

Functions

You already know print(), input() and len(). These are all built in functions but you can also write your own. Functions are just a named container for a block of code.


            def hello():
                print('Howdy!')
                print('Howdy!!!')
                print('Hello there.')
                return
            hello()
            hello()
            hello()


Let's have a closer look:

Function definition:


                        def hello():
                            print('Howdy!')
                            print('Howdy!!!')
                            print('Hello there.')
                            return


def defines a function called hello. The body is executed when we call this function, not when we define it.

Function call:


            hello()
            hello()
            hello()

Take care of indentation in python! Try running this code a few times and to understand what it does.

Why do we need functions?

...because we don't like to copy paste! Have a look at what the code would look like without a function:

                    print('Howdy!')
                    print('Howdy!!!')
                    print('Hello there.')
                    print('Howdy!')
                    print('Howdy!!!')
                    print('Hello there.')
                    print('Howdy!')
                    print('Howdy!!!')
                    print('Hello there.')

Imagine you need to change "Howdy" to "Good Morning" now.. With a function this is much less work and less error prone!

Why do we need functions?

Functions are abstractions (as explained here)

If you just want to use a function in your program, you don't have to know how it works inside! It's sort of like driving a car. With an automobile, you don't need to understand every detail about the engine and drive train and wheels, if all you want to do is drive the car. The only time you need to know how a function works inside is when you need to write the function, or change how it works. (It's like a car again; you need to know how a car works in order to build one or fix one.) But once a function is written and working, you never need to look at its insides again.

Functions with parameters

When we called print() we passed in values, so called arguments. Can we pass an argument to our function hello?

                    # Function definitions
                    def hello(name):
                        print('Hello ' + name)
                        return

                    # Code starts here
                    hello('Alice')
                    hello('Bob')

What happens if you call it without a name now? Can you explain why?

                    >>> hello()
                    >>> File "python", line 5
                    TypeError: hello() missing 1 required positional argument: 'name'

A function can take multiple parameters:

                    # Function definitions
                    def hello(name, age):
                        print('Hello ' + name)
                        print('You are ' + str(age) + ' years old')
                        return

                    # Code starts here
                    hello('Alice', 17)
                    hello('Bob', 45)

And you can pass user input to a function too!

                    # Function definitions
                    def hello(name, age):
                        print('Hello ' + name)
                        print('You are ' + str(age) + ' years old')
                        return

                    # Code starts here
                    user_name = input("What's your name?")
                    user_age = int(input("What's your age?"))
                    hello(user_name, user_age)

                    hello('Bob', 45)


Time for some practice

Can you write a function called print_sum(number1, number2) that takes two numbers as arguments and prints out the sum? Can you call it with different arguments to test it?

                    def print_sum(number1, number2):
                         # Your code goes here

This is how the call and output would look like:

                    print_sum(3, 7)


                    >>> "The sum of 3 and 7 is 10!"

Bonus points: Can you ask the user to input the number? (Hint: The input should be outside of the function and then passed to it. For a similar example check here)

Time for some practice

Can you write a function called count that takes a number as an argument and then counts up to this number? Can you call it with different arguments to test it?

                    def count(number):
                         # Your code goes here

This is how the call and output would look like:

                    count(3)


                    >>> 1
                    >>> 2
                    >>> 3
                    >>> GO!

Hint: You can use a for-loop for this Bonus points: Can you ask the user to input the number? Can you also ask the user if he/she wants to count up or down and act accordingly? (Hint: Ask the user and then pass it to the function you wrote before)

Return values

When we call the len() function with 'Hello' it will evaluate to the value 5. We call this a return value. A function can do something and then either leave it at and return nothing to the user or it can return something.
When you define a function you can also define what it returns:

                    # Function definition
                    def get_answer(number):
                        if number == 1:
                            return 'It is certain'
                        elif number == 2:
                            return 'It is decidedly so'
                        else:
                            return 'I dont know the answer to this'

                    # Code starts here
                    fortune = get_answer(5)
                    print(fortune)

The result of get_answer is stored in a variable called fortune. We can then pass this to print.

                        fortune = get_answer(3)
                        print(fortune)

we can also chain this call:

                        print(get_answer(3))

We could write a program that asks the user for a number and then prints his fortune:

                        print('Tell me a number: ')
                        number = int(input())
                        fortune = get_answer(number)
                        print(fortune)

Remember that we need to create an int out of the input string! This way someone else could write the function get_answer and we can just use it!

Time for practice!

Can you write a function called get_max that takes two numbers and returns the bigger one? Your code would look something like this:

                             # Function definitions:
                             def get_max(number1, number2):
                                # Your code goes here..

                             # Code execution starts here
                             maximum = get_max(3,7)
                             print(maximum) # This should print 7

Hint: You will need if statements. Hint 2: This is just a practice function. Python has a built-in function max() that does exactly that!

Another review exercise is here!

Importing from Modules

A lot of functions already exist and we can just reuse them. A lot of those are also built in:

                           import random
                           random_number = random.randint(1, 10)

We call random a module.
Another way of doing this:

                           from random import randint
                           random_number = randint(1, 10)

This way you don't have to type random.randint every time. These modules and functions are all very well documented, for example: https://docs.python.org/3.6/library/random.html

Another example:

The datetime module The datetime module has different parts inside: date, time, datetime, ... The double naming of datetime can be confusing.

                           import datetime
                           print(datetime.datetime.today())

or

                           from datetime import datetime
                           print(datetime.today())


Time for practice!

Have a look at the math module (especially the Constants). You don't only have functions in modules. You can also have general variables. Can you print out pi using the math module?

If you look at the Trigonometric Functions section of the documentation, how would you calculate sin(0.9) using the math module?

Time for practice!

Can you write a function called 'get_birth_year' that takes someone's age as an input and returns the year the person was born? Your code would look something like this:

                             # Your import statements go here:

                             # Function definitions:
                             def get_birth_year(age):
                                # Your code goes here. Do some magic and return birth year:

                             # Code execution starts here
                             age = # Ask the user for his age
                             birth_year = # Call your function with age
                             print('You were born in ' + str(birth_year))

Hint: You will need to find out how you can get the current year

A short program

Guess the number

Let's see how we can put everything we have learnt so far together! The output of our program will look something like this:

                    I am thinking of a number between 1 and 20.
                    Take a guess.
                    10
                    Your guess is too low.
                    Take a guess.
                    15
                    Your guess is too low.
                    Take a guess.
                    17
                    Your guess is too high.
                    Take a guess.
                    16
                    Good job! You guessed my number in 4 guesses!

Let's start with a new file and start with the computer generating a number between 1 and 20:

                        import random
                        # The computer generates a random number
                        secret_number = random.randint(1,20)
                        print('I am thinking of a number between 1 and 20')

As a next step let's ask the user to take 6 guesses. (If he doesn't guess correctly we don't want to bother him forever, if he figures it out before we can stop asking and congratulate him.)

                                # Ask the player to guess maximum 6 times.
                                total_guesses_taken = 0
                                while total_guesses_taken < 6:
                                    total_guesses_taken = total_guesses_taken + 1
                                    print('Take a guess.')
                                    guess = int(input())

                                    if guess < secret_number:
                                        print('Your guess is too low.')
                                    elif guess > secret_number:
                                        print('Your guess is too high.')
                                    else:
                                        break  # This is the correct guess, we can exit the while loop now

Finally we can tell the user whether he or she was correct or not.

                                if guess == secret_number:
                                    print('Good job! You guessed my number in ' + str(total_guesses_taken) + ' guesses!')
                                else:
                                    print('Nope. The number I was thinking of was ' + str(secret_number))


Practice Questions

When does the code in a function execute: when the function is defined or when the function is called?

What is the difference between a function and a function call?
What happens to variables in a local scope when the function call returns?
If you had a function named bacon() in a module named spam, how would you call it after import spam?

Practice Project

The Collatz Sequence

Step1: Write a function named collatz() that has one parameter named number. If number is even, then collatz() should print number // 2 and return this value. If number is odd, then collatz() should print and return 3 * number + 1.

                        def collatz(number):
                            # Your code

Step 2: Then write a program that lets the user type in an integer and that keeps calling collatz() on that number until the function returns the value 1.

(Amazingly enough, this sequence actually works for any integer—sooner or later, using this sequence, you’ll arrive at 1! Even mathematicians aren’t sure why.)

Things to remember: - Remember to convert the value from input() to an int, otherwise it will be a string value - You can check if a number is even using number % 2 == 0 (If number % 2 == 1 the number is odd). Maybe you can adapt the following code to help you?

                                if number % 2 == 0:
                                    print("This number is even")
                                else:
                                    print("This number is odd")

The output of your program could look something like this:

                            Enter number: 3
                            10
                            5
                            16
                            8
                            4
                            2
                            1


Thank you!!

Introduction to Python

Extra Info for the curious

Closely following Automate the boring stuff with Python

The None value

In Python there is a value called None which means no value/absent value. Just like True and False this must be capitalized: None
Behind the scenes Python adds return None to the end of every function where nothing else is specified. return without a value will also mean None

                       def hello():
                            print("test")

... is the same as ...

                    def hello():
                         print("test")
                         return None

... is the same as ...

                def hello():
                     print("test")
                     return


Keyword arguments

Most arguments have a position in the function call. The first argument will be the first named parameter, etc. But the print function can take as many arguments as you give it.
print("test", "bla", "something else", "etc")
Does that mean you can't specify anything else?
Let's have a closer look at the print function:

                          print('Hello')
                          print('World')

will produce:

                        >>> Hello
                        >>> World

This is because print automatically adds a new line at the end. One way to avoid this is to override the line ending:

                          print('Hello', end='')
                          print('World')


                        >>> HelloWorld

end is called a keyword argument because you have to call it by it's name
Similarly, when you print multiple string values:

                        print('cats', 'dogs', 'mice')


                        >>> cats dogs mice

Python automatically puts a single space between. If you want to change that behaviour, you can change the sep argument of the print function:

                        print('cats', 'dogs', 'mice', sep=',')


                        >>> cats,dogs,mice


Time for some practice

Can get the following line on the screen? how?

                        >>> shirts|trousers|blouses|shoes

Ask the user to input a number. Can you print all the numbers from 1 to the user's number like that?

                        >>> 1|2|3|4|5


Local and Global Scope

Parameters and variables that are assigned in a function are said to exist in that function’s local scope. Variables that are assigned outside all functions are said to exist in the global scope.

Scope is like a container. When a scope is destrozed, all the variables in it are forgotten.

The global scope lasts from your when your program begins until it ends.
Local variables can not be read from outside:

                            # Function Definitions
                            def spam():
                                eggs = 31337

                            # Execution starts here
                            spam()
                            print(eggs)

eggs variable is only known in the local scope of spam!

                            Traceback (most recent call last):
                                File "C:/test3784.py", line 4
                                  print(eggs)
                            NameError: name 'eggs' is not defined

Global variables can be read from inside:

                        # Function Definitions
                        def spam():
                            print(eggs)

                        # Execution starts here
                        eggs = 42
                        spam()

Will print out:

                        >>> 42

Local and Global variables with the same name: Consider the same example as before, with a tiny change:

                        # Function Definitions
                        def spam():
                            eggs = 19
                            print(eggs)

                        # Execution starts here
                        eggs = 42
                        spam()

What will be printed? Why?
This can be very confusing... And is the reason why you should avoid variables with the same name in global and local scope

To read more about scope, please refer to the section in the book where it is explained further!

Introduction to Python

Lesson 4

Closely following Automate the boring stuff with Python

Warmup Exercise

Lesson 3 Recap

Lists

Lists can contain multiple values, which makes it easier to write programs that handle large amounts of data. Lists can even contain other lists


                        >>> [1, 2, 5]
                        [1, 2, 5]
                        >>> spam = ['cat', 'bat', 'rat', 'elephant']
                        >>> spam
                        ['cat', 'bat', 'rat', 'elephant']

spam is assigned the whole list!

List Indexes

You can access the elements in a list with indexes: list_indexes

                            >>> spam = ['cat', 'bat', 'rat', 'elephant']
                            >>> spam[0]
                            'cat'
                            >>> spam[1]
                            'bat'
                            >>> spam[2]
                            'rat'
                            >>> ['cat', 'bat', 'rat', 'elephant'][3]
                            'elephant'

The first index is always 0
Python will give you an IndexError if you use an index that exceeds the number of values in your list:

                            >>> spam = ['cat', 'bat', 'rat', 'elephant']
                            >>> spam[10000]
                            Traceback (most recent call last):
                              File "python", line 1
                                spam[10000]
                            IndexError: list index out of range

Indexes can only be integers:

                            >>> spam = ['cat', 'bat', 'rat', 'elephant']
                            >>> spam[1.0]
                            Traceback (most recent call last):
                              File "python", line 1
                                spam[1.0]
                            TypeError: list indices must be integers, not float


Python lists can contain other lists


                            >>> spam = [['cat', 'bat'], [10, 20, 30, 40, 50]]
                            >>> spam[0]
                            ['cat', 'bat']
                            >>> spam[0][1]
                            'bat'
                            >>> spam[1][4]
                            50


Negative Indexes

While indexes start at 0 and go up, you can also use negative integers for the index. The integer value -1 refers to the last index in a list, the value -2 refers to the second-to-last index in a list, and so on.

                            >>> spam = ['cat', 'bat', 'rat', 'elephant']
                            >>> spam[-1]
                            'elephant'
                            >>> spam[-3]
                            'bat'
                            >>> 'The ' + spam[-1] + ' is afraid of the ' + spam[-3] + '.'
                            'The elephant is afraid of the bat.'


Slices

Just as an index can get a single value from a list, a slice can get several values from a list, in the form of a new list.

                            >>> spam = ['cat', 'bat', 'rat', 'elephant']
                            >>> spam[0:4]
                            ['cat', 'bat', 'rat', 'elephant']
                            >>> spam[1:3]
                            ['bat', 'rat']
                            >>> spam[0:-1]
                            ['cat', 'bat', 'rat']

In a slice, the first integer is the index where the slice starts. The second integer is the index where the slice ends (not inclusive!). A slice evaluates to a new list value.
As a short cut you can leave out the first or the last integer:

                             >>> spam[:2]  # Beginning to index 2
                             ['cat', 'bat']
                             >>> spam[1:]  # Index 1 to end
                             ['bat', 'rat', 'elephant']
                             >>> spam[:]   # everything
                             ['cat', 'bat', 'rat', 'elephant']


Lists support len() too

The len() function will return the number of values that are in a list value passed to it, just like it can count the number of characters in a string value.

                             >>> spam = ['cat', 'dog', 'moose']
                             >>> len(spam)
                             3


Time for Practice!

here

Changing Lists

Changing Values in a List

Normally you assign variables like spam = 42. But you can assign an index in a list:

                        >>> spam = ['cat', 'bat', 'rat', 'elephant']
                        >>> spam[1] = 'aardvark'
                        >>> spam
                        ['cat', 'aardvark', 'rat', 'elephant']


                        >>> spam[2] = spam[1]
                        >>> spam
                        ['cat', 'aardvark', 'aardvark', 'elephant']


                        >>> spam[-1] = 12345
                        >>> spam
                        ['cat', 'aardvark', 'aardvark', 12345]


Appending to a list

You can add just one element to a list using append

                                    >>> spam = ['cat', 'bat', 'rat', 'elephant']
                                    >>> spam.append('dog')


List Concatenation

The + operator can combine two lists to create a new list value in the same way it combines two strings into a new string value. The * operator can also be used with a list and an integer value to replicate the list.

                    >>> [1, 2, 3] + ['A', 'B', 'C']
                    [1, 2, 3, 'A', 'B', 'C']

                    >>> ['X', 'Y', 'Z'] * 3
                    ['X', 'Y', 'Z', 'X', 'Y', 'Z', 'X', 'Y', 'Z']


                    >>> spam = [1, 2, 3]
                    >>> spam = spam + ['A', 'B', 'C']
                    >>> spam
                    [1, 2, 3, 'A', 'B', 'C']


Removing Values from Lists

The del statement will delete values at an index in a list. All of the values in the list after the deleted value will be moved up one index.

                            >>> spam = ['cat', 'bat', 'rat', 'elephant']
                            >>> del spam[2]
                            >>> spam
                            ['cat', 'bat', 'elephant']
                            >>> del spam[2]
                            >>> spam
                            ['cat', 'bat']

There is another way here too (to remove by element, not by index)!

                                >>> spam = ['cat', 'bat', 'rat', 'elephant']
                                >>> spam.remove('cat')


Time for some practice!

here

Time for some practice!

spam = [2, 4, 6, 8, 10]
1. How would you assign the value 'hello' as the third value in spam? 2. Can you append ['cat', 'dog', 'bird'] to spam? 3. Can you delete the last element? Can you delete the first? 4. Can you delete the element 'dog'?

Working with lists

When you first begin writing programs, it’s tempting to create many individual variables to store a group of similar values. For example, if I wanted to store the names of my cats, I might be tempted to write code like this:

                                cat_name1 = 'Zophie'
                                cat_name2 = 'Pooka'
                                cat_name3 = 'Simon'
                                cat_name4 = 'Lady Macbeth'
                                cat_name5 = 'Fat-tail'
                                cat_name6 = 'Miss Cleo'

.. or like this: ...

                                    print('Enter the name of cat 1:')
                                    cat_name1 = input()
                                    print('Enter the name of cat 2:')
                                    cat_name2 = input()
                                    print('Enter the name of cat 3:')
                                    cat_name3 = input()
                                    print('Enter the name of cat 4:')
                                    cat_name4 = input()
                                    print('Enter the name of cat 5:')
                                    cat_name5 = input()

                                    print('The cat names are:')
                                    print(cat_name1 + ' ' + cat_name2 + ' ' + cat_name3 + ' ' + cat_name4 + ' ' +
                                    cat_name5)

This is very repetitive.. and not extensible (What if you have 7 cats?)
Here is a improved version of that:

                                    cat_names = []
                                    while True:
                                        print('Enter the name of cat ' + str(len(cat_names) + 1) +
                                          ' (Or enter nothing to stop.):')
                                        name = input()
                                        if name == '':
                                            break
                                        cat_names = cat_names + [name] # list concatenation

                                    print('The cat names are:')
                                    for name in cat_names:
                                        print('  ' + name)

Let's try running this program!

For loops with lists

In Lesson 2 you learned about loops:

                        for i in range(4):
                            print(i)

This is because range returns a list-like value
Iterating over a "real" list works the same way:

                        >>> supplies = ['pens', 'staplers', 'flame-throwers', 'binders']
                        >>> for supply in supplies
                            print('The supply is: ' + supply)


                            The supply is: pens
                            The supply is: staplers
                            The supply is: flame-throwers
                            The supply is: binders


Time for practice!

Can you write some code that sums up all the values in a list?

                    numbers = [1, 3, 5, 10, 6]
                    # Your code goes here

                    print(sum) # This should print 25

Bonus: Can you make it a function that takes a list as input? Bonus2: Can you ask the user for numbers like we asked for cat names?

Check if a value exists

You can find out whether a value is or isn't in a list with the in and not in expressions.

                        >>> 'howdy' in ['hello', 'hi', 'howdy', 'heyas']
                        True
                        >>> spam = ['hello', 'hi', 'howdy', 'heyas']
                        >>> 'cat' in spam
                        False
                        >>> 'howdy' not in spam
                        False
                        >>> 'cat' not in spam
                        True

For example, the following program lets the user type in a pet name and then checks to see whether the name is in a list of pets.

                            my_pets = ['Zophie', 'Pooka', 'Fat-tail']
                            print('Enter a pet name:')
                            name = input()
                            if name not in my_pets:
                                print('I do not have a pet named ' + name)
                            else:
                                print(name + ' is my pet.')

The output might look something like this:

                                Enter a pet name:
                                Footfoot
                                I do not have a pet named Footfoot


Sample Program

Remember the fortune teller program from earlier? We can simplify that by using a list:

                            import random
                            messages = ['It is certain',
                                'It is decidedly so',
                                'Yes definitely',
                                'Reply hazy try again',
                                'Ask again later',
                                'Concentrate and ask again',
                                'My reply is no',
                                'Outlook not so good',
                                'Very doubtful']

                            random_index = random.randint(0, len(messages) - 1)
                            print(messages[random_index])

Can you explain why we need the -1?

Dictionaries

Dictionaries are like lists - a collection of many values, but the index can be of any type, not just an integer.

                            >>> cat = {'size': 'fat', 'color': 'gray', 'disposition': 'loud'}
                            >>> cat['size']
                            'fat'
                            >>> 'Cat has a ' + cat['disposition'] + ' disposition'
                            'Cat has a loud disposition'


For dictionaries, indexes are known are keys. Each element is a key-value pair.

Dictionaries vs. Lists

Dictionaries are not like lists in that the order of the dictionaries don't matter

                            >>> cat = {'size': 'fat', 'color': 'gray', 'disposition': 'loud'}
                            >>> tab = {'disposition': 'loud', 'size': 'fat', 'color': 'gray'}
                            >>> cat == tab
                            True


Since there's no ordering, slicing a dictionary doesn't make sense.
Python will give you a KeyError if a key does not exist in your dictionary:

                            >>> cat = {'size': 'fat', 'color': 'gray', 'disposition': 'loud'}
                            >>> cat['age']
                            Traceback (most recent call last):
                              File "python", line 1
                            KeyError: 'age'


Organising data with dictionaries

Dictionaries let you organise data in a more intuitive way.
Maybe you want to describe information about a specific equity:
  • Ticker
  • Price
  • Tradable
  • Exchange

Organising data with dictionaries


                            >>> equity = {
                                'ticker': 'AAPL',
                                'price': 104.6,
                                'tradeable': True,
                                'exchange': 'US'
                            }
                            >>> equity['ticker']
                            'AAPL'


Organising data with dictionaries

Or maybe you want to keep the ages of everyone in the room

                            >>> ages = {'Tom': 23, 'Gabriel': 27, 'Kathrin': 25}
                            >>> ages['Tom']
                            23
                            >>> ages['Kathrin']
                            25


Working with dictionaries

We've just seen how to read from a dictionary, but how do we modify one?

                            >>> ages = {'Tom': 23, 'Gabriel': 27, 'Kathrin': 25}
                            >>> ages['Tom']
                            23
                            >>> ages['Tom'] = ages['Tom'] + 1
                            >>> ages['Tom']
                            24

Naomi joins the class! Now we need to record her age

                            >>> ages = {'Tom': 23, 'Gabriel': 27, 'Kathrin': 25}
                            >>> ages['Naomi']
                            Traceback (most recent call last):
                              File "python", line 1
                            KeyError: 'Naomi'
                            >>> ages['Naomi'] = 26
                            >>> ages
                            {'Tom': 23, 'Gabriel': 27, 'Kathrin': 25, 'Naomi': 26}

Kathrin goes on holiday so we want to remove her age

                            >>> ages = {'Tom': 23, 'Gabriel': 27, 'Kathrin': 25}
                            >>> del ages['Kathrin']
                            >>> ages
                            {'Tom': 23, 'Gabriel': 27}



Check if a key exists

Now we want to check if we've recorded someone's age

                            >>> ages = {'Tom': 23, 'Gabriel': 27, 'Kathrin': 25}
                            >>> 'Naomi' in ages
                            False
                            >>> 'Kathrin' in ages
                            True

We can combine this with if and else to do some interesting things

                                if 'Gabriel' in ages:
                                  print('Gabriel is ' + str(ages['Gabriel']) + ' years old')
                                else:
                                  print("We do not have Gabriel's age")


Time for some practice!

here

For loops with dictionaries

Dictionaries provide three functions which return lists of things you can use in a for loop

Here's how to loop through the values of a dictionary

                                >>> ages = {'Tom': 23, 'Gabriel': 27, 'Kathrin': 25}
                                >>> for age in ages.values():
                                ...   print(age)

                                23
                                27
                                25

And here's how to loop through the keys of a dictionary

                            >>> ages = {'Tom': 23, 'Gabriel': 27, 'Kathrin': 25}
                            >>> for name in ages.keys():
                            ...   print(name)

                            Tom
                            Gabriel
                            Kathrin

Or how about both at the same time?

                            >>> ages = {'Tom': 23, 'Gabriel': 27, 'Kathrin': 25}
                            >>> for item in ages.items():
                            ...   print(item)
                            ...   print(item[0] + ' -> ' + str(item[1]))

                            ('Tom', 23)
                            'Tom -> 23'
                            ('Gabriel', 27)
                            'Gabriel -> 27'
                            ('Kathrin', 25)
                            'Kathrin -> 25'

Using items() will give you the key-value pairs

Practice Questions

What is [ ]?

For the following 3 question assume:

spam = ['a', 'b', 'c', 'd']
1. What does spam[int(int('3' * 2) // 11)] evaluate to?
2. What does spam[-1] evaluate to?
3. What does spam[:2] evaluate to?

How can you delete an element from a list?

Read about methods on Lists: append(), remove() and index()

Assume:
bacon = [3.14, 'cat', 11, 'cat', True]
1. What does bacon.index('cat') evaluate to?
2. What does bacon.remove('cat') do? What does bacon look like now?
3. What does bacon.append(99) do? What does bacon look like now?

Can you write a function that gets the largest number from a list?

What does the code for an empty dictionary look like?

Can you write a dictionary with a key 'foo' and value 42?

What happens if you try to access spam['foo'] if spam = {'bar': 100}?

What's the difference between the following codes? Assume spam is a dictionary

  • between the expressions 'cat' in spam and 'cat' in spam.keys()?
  • between the expressions 'cat' in spam and 'cat' in spam.values()?

Practice Project - Lists

Comma Code

Say you have a list value like this:
spam = ['apples', 'bananas', 'tofu', 'cats']
Write a function that takes a list value as an argument and returns a string with all the items separated by a comma and a space, with and inserted before the last item. For example, passing the previous spam list to the function would return 'apples, bananas, tofu, and cats'. But your function should be able to work with any list value passed to it.

Practice Project - Dictionaries

Fantasy Game Inventory

You are creating a fantasy video game. The data structure to model the player’s inventory will be a dictionary where the keys are string values describing the item in the inventory and the value is an integer value detailing how many of that item the player has. For example, the dictionary value {'rope': 1, 'torch': 6, 'gold coin': 42, 'dagger': 1, 'arrow': 12} means the player has 1 rope, 6 torches, 42 gold coins, and so on.

Write a function named display_inventory() that would take any possible “inventory” (dictionary) and display it like the following:

                            Inventory:
                            12 arrow
                            42 gold coin
                            1 rope
                            6 torch
                            1 dagger

                            Total number of items: 63


Fantasy Game Inventory

Imagine a treasure represented as a list of strings like this:

                            treasure = ['gold coin', 'dagger', 'gold coin', 'gold coin', 'ruby']

Write a function named add_to_inventory(inventory, added_items), where the inventory parameter is a dictionary representing the player’s inventory (like in the previous project) and the added_items parameter is a list like treasure. The add_to_inventory() function should return a dictionary that represents the updated inventory. Note that the added_items list can contain multiples of the same item. Your code could look something like this:

                            #Function definitions
                            def display_inventory(inventory):
                                # Code you wrote before

                            def add_to_inventory(inventory, added_items):
                                # your code goes here

                            # Code execution starts here
                            inv = {'gold coin': 42, 'rope': 1}
                            treasure = ['gold coin', 'dagger', 'gold coin', 'gold coin', 'ruby']
                            inv = add_to_inventory(inv, treasure)
                            display_inventory(inv)

And the output could look something like this...
And the output would look something like:

                            Inventory:
                            45 gold coin
                            1 rope
                            1 ruby
                            1 dagger

                            Total number of items: 48


Thank you!!

Introduction to Python

Lesson 5

Closely following Automate the boring stuff with Python

Setting up Jupyter Notebook

Set up: First steps

  1. Download and install Anaconda
  2. Create a Folder structure, for the exercises we are going to use Documents->Jupyter->NameOfProject
  3. Move the relevant files excel files into the folder of your project, for the first example this will be example.xlsx
  4. Start Jupyter Notebook, navigate to your folder, create a new Jupyter Notebook and save it.
  5. You are ready to go!

Jupyter Notebook Basics

  • Notebook documents (or “notebooks”, all lower case) are documents which contain both computer code (e.g. python) and rich text elements (paragraph, equations, figures, links, etc…).
  • To run a cell, Use Shift + Enter. This way you can run the notebook step by step
  • You can run the whole notebook in a single step by clicking on the menu Cell -> Run All.
  • To restart the kernel (i.e. the computational engine), click on the menu Kernel -> Restart. This can be useful to start over a computation from scratch (e.g. variables are deleted, open files are closed, etc…).

Working with Excel

A bit of vocabulary

  • An Excel spreadsheet document is called a workbook. A single workbook is saved in a file with the .xlsx extension
  • Each workbook can contain multiple sheets (also called worksheets). The current one is called the active sheet
  • Each sheet has columns (addressed by letters starting at A) and rows (addressed by numbers starting at 1). A box at a particular column and row is called a cell.

Opening an Excel file

Make sure you have example.xlsx ready in the same folder as your Notebook. Now let's open our first excel file:

                         # Needed imports: This is the python excel module
                         import openpyxl



                        # Open our excel workbook from a file path.
                        wb = openpyxl.load_workbook('example.xlsx')
                        type(wb)


type(wb) simply lets you inspect the type of the object in that variable. You don't need it to proceed and it's advisable to remove it in order to reduce the spam output.

                        Out[3]: openpyxl.workbook.workbook.Workbook


Getting sheets from a workbook

You can get all the sheets as a list by accessing worksheets:

                         wb.worksheets

Note that this is not a function call, that's why there are no '()'

                        Out [7]: [<Worksheet "Sheet1">, <Worksheet "Sheet2">, <Worksheet "Sheet3">]

You can now assign a variable to the sheet we want to work with. You can also inspect that

                        # Access the first sheet of the workbook
                        sheet = wb.worksheets[0]
                        sheet.title


                        Out [7]: 'Sheet1'


Getting cells from a sheet

You can access the cells similarly to Excel:

                         sheet['A1'].value


                        Out[9]: datetime.datetime(2015, 4, 5, 13, 34, 2)


                        c = sheet['B1']
                        print('Row ' + str(c.row) + ', Column ' + c.column + ' is ' + c.value)
                        print('Cell ' + c.coordinate + ' is ' + c.value)


                        Out [11]: Row 1, Column B is Apples
                                  Cell B1 is Apples

As you may have noticed, c is a Cell object. If you want the value you will need to access it using .value You can access many properties on a cell, such as row, column, coordinate and value
You can also access the cells using the cell() function on your sheet

                        sheet.cell(row=1, column=2)
                        sheet.cell(row=1, column=2).value

This way you can iterate over cells:

                        for i in range(1,8,2):
                            print(i, sheet.cell(row=i, column=2).value)


                        1 Apples
                        3 Pears
                        5 Apples
                        7 Strawberries


What about number of columns and rows?

You can access those on the sheet!

                        sheet.max_row
                        sheet.max_column


                        OUT[14]: 7
                                 3


We can access complete rows or columns:


                        for cells in sheet.iter_rows(min_col=2, max_col=2):
                            print(cells[0].value)


                        Out[12]: Apples
                                 Cherries
                                 Pears
                                 Oranges
                                 Apples
                                 Bananas
                                 Strawberries

iter_rows returns a list of rows with cells from min_col to max_col!
You can use iter_cols to get list of columns, iter_cols uses min_row and max_row to select which rows to return.
Note that those value start from 1 and not 0!

Sample Project

Reading and analysing Data from a spreadsheet

To start, open a new Jupyter notebook and write code for the folloing tasks. You can copy paste from the previous slides to do that:

  1. Import the module openpyxl
  2. Open the Excel file and save it to a variable called 'wb'
  3. Access the first sheet and save it to a variable called 'sheet'


In this example we would like to analyse the dataset and report to how many ports are down per switch.
Preparing the sheet:

                        In [1]: import openpyxl
                        In [2]: wb = openpyxl.load_workbook('dataset.xlsx')
                        In [3]: sheet = wb.worksheets[0]

Let's create a datastructure to fill in our analysis. We are choosing a dictionary, this way we can store it as key: switch-name -> value: number of nodes that are down

                        down_nodes = {}

The result will look something like this:

                        {
                            'ATS1-1A-NODE-SW1' : 1,
                            'ATS1-1A-NODE-SW2' : 3,
                            ....
                        }

Now we can start looping over our sheet (not including the header!) - In this case rows and columns are indexed with 1.

                         for row_number in range(2, sheet.max_row + 1):
# Retrieve switch name from the cell in column 1 switch_name = sheet.cell(row=row_number, column=1).value
# If we see switch_name for the first time we add it if switch_name not in down_nodes: down_nodes[switch_name] = 0
# Retrieve status from the cell in column 6 status = sheet.cell(row=row_number, column=6).value
# If the status is "down" we want to increase the number: if status == 'down': down_nodes[switch_name] = down_nodes[switch_name] + 1

Inspecting the results


                        down_nodes


                        {
                            'ATS1-1A-NODE-SW1': 1,
                            'ATS1-1A-NODE-SW2': 4,
                            'ATS2-1A-NODE-SW1': 6,
                            'ATSS-7A-CORP-SW1': 24,
                            'ATSS-7A-CORP-SW2': 11
                        }


Writing the results to a file

Let's say you want to write the results to a file, with the simple format:
Switch Name # Down
ATS1-1A-NODE-SW1 1
ATS1-1A-NODE-SW2 4

There are many options available:
  • Write to another sheet in your excel file (or even a new excel file)
  • Write to a simple text file
  • Save them as comma separated values (so they can be opened in excel) - i.e. csv
  • ....

Let's start with a simple texfile:


                        # Creating a new file, make it writeable
                        result_file = open('results.txt', 'w')

                        # Empty the file (don't do this if you just append to a file)
                        result_file.truncate()
# Iterate over our dictionary and write to file for item in down_nodes.items(): result_file.write(item[0] + ': ' + str(item[1]) + '\n')
# Close the file result_file.close()
And you have successfully created a text file using Python!! :)

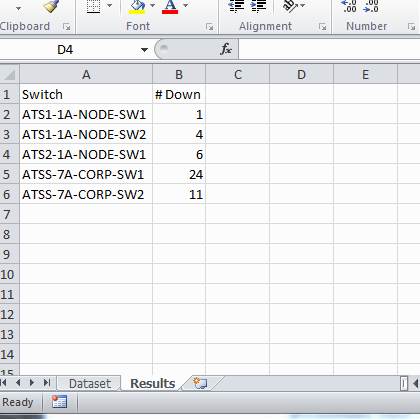

What about writing to a new sheet and save?


                          # There is no second sheet yet, so we can create it:
                          results_sheet = wb.create_sheet('Results')
# Create Header row results_sheet.cell(row=1, column=1).value = 'Switch' results_sheet.cell(row=1, column=2).value = '# Down'
# Write to the sheet (start from row 2) row = 2 for item in down_nodes.items(): results_sheet.cell(row=row, column=1).value = item[0] results_sheet.cell(row=row, column=2).value = item[1] row = row + 1
# Now you just need to save the sheet (choose the same name or another one) # We recommend to keep the original "clean" and save to a new name. wb.save('dataset_results.xlsx')

What if we want to apply some colours?

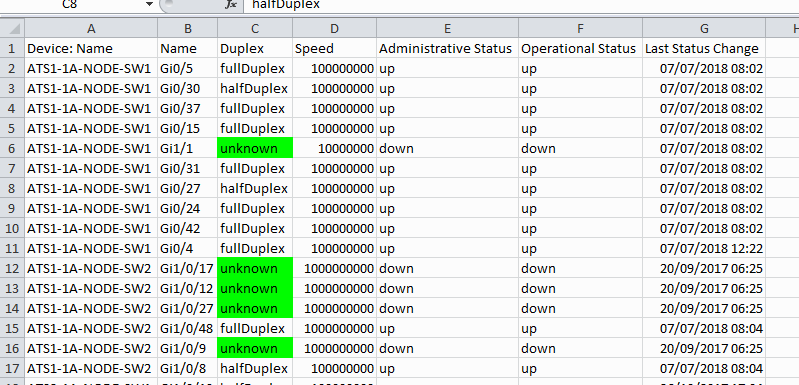

Let's find all the unknown duplex types and highlight them!

                        # First we need to define/create our fill-style
                        fill_style_green = openpyxl.styles.PatternFill("solid", fgColor=openpyxl.styles.colors.GREEN)
# Now we can iterate over all the rows and assign # the style to them for row in sheet.rows: duplex_cell = row[2] if duplex_cell.value == 'unknown': duplex_cell.fill = fill_style_green
# Don't forget to save! wb.save('dataset_results.xlsx')

Let's see what we have done!

duplex results

You can find more ideas in the openpyxl documentation

Working with data and pandas

Introduction

  1. Pandas is Python's data analysis library
  2. Numpy is Python's scientific computing libray (which pandas depends on)
  3. Inside pandas is a powerful data container called a dataframe
  4. Pandas is integrated with another library (matplotlib) making plotting really easy

Pandas dataframes


                        import pandas as pd
                        import numpy as np

Dataframes can be created in many different ways, here we create using a dict.

                        dict = {'employee': ['Bob', 'Jake', 'Lisa', 'Sue'],
                                'group': ['Accounting', 'Engineering', 'Engineering', 'HR']}
                        dataframe = pd.DataFrame(dict)
                        print(dataframe)

Extract a column

                        roles = dataframe['group']

Extract some data

                        dataframe.loc[dataframe['employee']=='Lisa', 'group']


Merging datasets


                        df1 = pd.DataFrame({'employee': ['Bob', 'Jake', 'Lisa', 'Sue'],
                                            'group': ['Accounting', 'Engineering', 'Engineering', 'HR']})
                        df2 = pd.DataFrame({'employee': ['Lisa', 'Bob', 'Jake', 'Sue'],
                                            'hire_date': [2004, 2008, 2012, 2014]})
                        display(df1, df2)


                        df3 = pd.merge(df1, df2)
                        display(df3)


Reading from csv and plotting using a dataframe


                        import numpy as np
                        import pandas as pd
                        import matplotlib.pyplot as plt

Read the csv

                        data = pd.read_csv("price_data.csv")

Plot

                        data.plot()


What now?

Thank you!!
